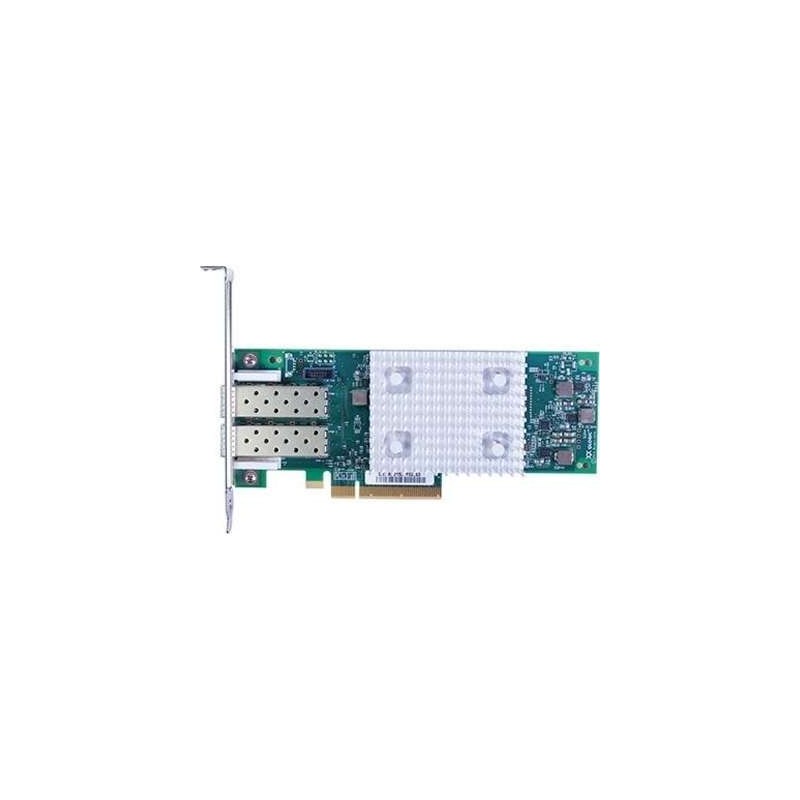

Tarjeta Lenovo HBA 01CV760 Fibra Canal QLogic 16Gb FC Dual Port

ESPECIFICACIONES TECNICAS

The QLogic Enhanced Gen 5 16 Gb FC HBAs have the following specifications:

• Host interface: PCIe 3.0 x8
• Ports: Single-port and dual-port SFP+ based adapters
• Link speed: Support for 16 Gb, 8 Gb and 4 Gb FC link speeds, which are automatically negotiated
• Data rate: 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), and 4.25 Gbps (400 MBps) autosensing (per port), with full duplex
• Performance: Up to 1,300,000 IOPS (up to 650,000 IOPS per port)
• Fibre Channel standards: FC-PI-5, FC-GS-2, FC-GS-3, SCSI-FCP, FCP-2, FC-TAPE
• Topology: Point-to-point and switched fabric
• Supported media: Hot-pluggable 16 Gbps Fibre Channel SFP+ short wave optical transceivers (850 nm) with LC connectors (included with the adapters)
• Distance support:
  • Operating at 16 Gbps:
    • Up to 35 m on 50/125 µm OM2 Multi-Mode Fiber (MMF)
    • Up to 100 m on 50/125 µm OM3 MMF
    • Up to 125 m on 50/125 µm OM4 MMF
  • Operating at 8 Gbps:
    • Up to 21 m on 62.5/125 µm OM1 MMF
    • Up to 50 m on 50/125 µm OM2 MMF
    • Up to 150 m on 50/125 µm OM3 MMF
    • Up to 190 m on 50/125 µm OM4 MMF
  • Operating at 4 Gbps:
    • Up to 70 m on 62.5/125 µm OM1 MMF
    • Up to 150 m on 50/125 µm OM2 MMF
    • Up to 380 m on 50/125 µm OM3 MMF
    • Up to 400 m on 50/125 µm OM4 MMF
• Management software:
  • The QLogic unified management application, QLogic QConvergeConsole (QCC), provides single-pane-of-glass management across generations of QLogic FC adapters.
  • QLogic supports all major APIs for deployment flexibility and integration with third-party management tools, including the VMware vCenter and Brocade Network Advisor.

Servers

The QLogic Enhanced Gen 5 16 Gb FC HBAs are supported on the following Lenovo servers:

• System x3500 M5 Type 5464
• System x3550 M5 Type 5463
• System x3550 M5 Type 8869
• System x3650 M5 Type 5462
• System x3650 M5 Type 8871
• System x3750 M4 Type 8753
• System x3850 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
• System x3950 X6 Type 6241 (E7 v2, E7 v3, and E7 v4)
• NeXtScale nx360 M5 Type 5465 (E5-2600 v3 and E5-2600 v4)

For QLogic Enhanced Gen 16 Gb FC HBAs support details for a particular server, refer to a Lenovo Press product guide for the server.

Operating systems

The QLogic Enhanced Gen 5 16 Gb FC HBAs support the following operating systems:

• Microsoft:
  • Microsoft Windows Server 2012 R2
  • Microsoft Windows Server 2012
• Red Hat:
  • Red Hat Enterprise Linux 7 Update 2
  • Red Hat Enterprise Linux 7 Update 1
  • Red Hat Enterprise Linux 7
  • Red Hat Enterprise Linux 6 Update 7 Server x64 Edition
  • Red Hat Enterprise Linux 6 Update 6 Server x64 Edition
  • Red Hat Enterprise Linux 6 Update 5 Server x64 Edition
• SUSE:
  • SUSE Linux Enterprise Server 12 SP1
  • SUSE Linux Enterprise Server 12
  • SUSE Linux Enterprise Server 11 SP4 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 SP3 for AMD64/EM64T
• VMware:
  • VMware vSphere 6.0 Update 2
  • VMware vSphere 6.0 Update 1
  • VMware vSphere 6.0
  • VMware vSphere 5.5 Update 3
  • VMware vSphere 5.5 Update 2

SAN switches

The following table lists the FC SAN switches that are currently offered by Lenovo that can be used with the QLogic Enhanced Gen 5 16 Gb FC HBAs in Lenovo FC SAN solutions.

Warranty

The QLogic Enhanced Gen 5 16 Gb FC HBAs carry a one-year limited warranty. When installed in a supported server, the adapters assume your system’s base warranty and any Lenovo Services warranty upgrade.

Physical specifications

The QLogic Enhanced Gen 5 16 Gb FC HBAs have the following dimensions (approximate):

• Low profile form factor card
• 168 mm x 69 mm (6.60 in. x 2.7 in.)
• Standard (3U) and low-profile (2U) brackets included

Operating environment

The QLogic Enhanced Gen 5 16 Gb FC HBAs are supported in the following environment:

• Temperature:
  • Operating: 0 - 55 °C (32 - 131 °F)
  • Storage: -20 - 70 °C (-4 - 185 °F)
• Relative humidity:
  • Operating: 10 - 90% (non-condensing)
  • Storage: 5 - 95% (non-condensing)
